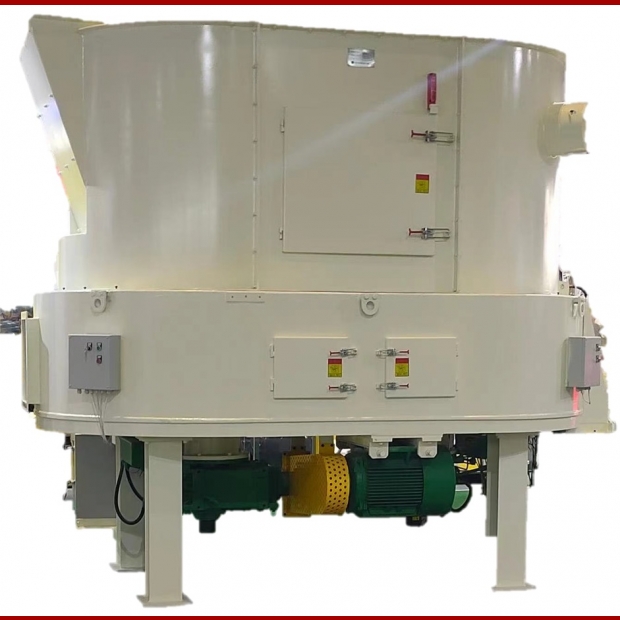

Double-disc Stirring Cooling Machine

S83 series double-disc stirring cooling machine is mainly used for cooling old sand in sand processing.
Structural features: a transmission mechanism is formed by means of driving two reducers with one motor; a working mechanism is formed by two sets of mixing devices.
During working, the hot old sand, which has been humidified (with a moisture content of about 4-5%), is fed into the machine through the feeding port and is strongly stirred by the scraper, with two-ring motions inside the plate; at the same time, cold air is blown into the machine from the air inlet on the enclosure to exchange heat with the sand, and the hot air is discharged from the outside of the machine through the top exhaust duct; under the action of the external scraper, the sand pushes the discharging door open on the side wall to discharge sand from the machine.
