GS Type High Efficiency Rotor Sand Mixer

GS Type High Efficiency Rotor Sand Mixer

GS Type High Efficiency Rotor Sand Mixer

It is mainly used foundry sand mixing machines can be used in a single sand shape, but also mixing dry scrub, since the hard sand, sand veil and back, can also be used for glass, ceramics, refractories, etc. Mixing of powder industry granular materials.

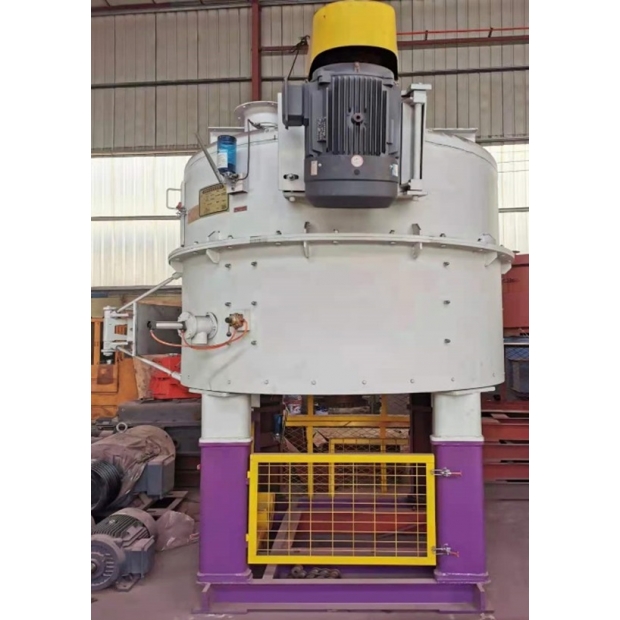

  • 混砂機照片2.jpg

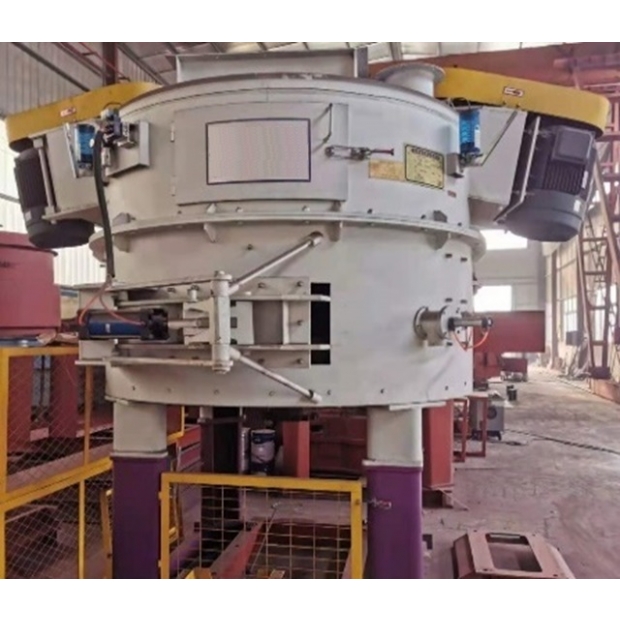

  • 混砂機照片3.jpg

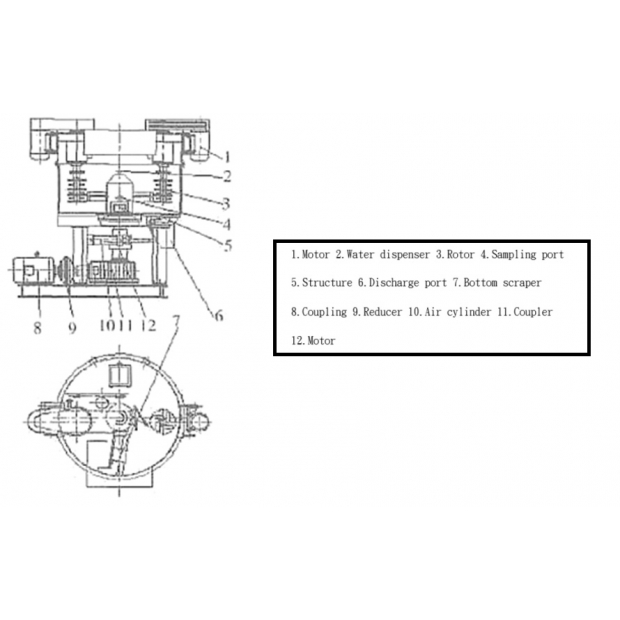

  • 混砂機解析.jpg
DETAIL
  1. Floor sand mixing machine imported high strength wear-resistant plate,the wear-resisting degree is the traditional ash green cast stone rock a few times, thoroughly solved the machine adhering sand bottom of the basin shortcomings, make green sand quality improved obviously, scraper life span more than 5 times.
  2. Double Stype scraper with high speed and rake rotor with best sand mixing with big, blending adility, good sand properties.
  3. And the most new sind unloading door open, reliable and flexible material unloading speed.
  4. In the circle open sccessdoor, easy maintenance, cleaning machine basin inside.
  5. Steel structure base to make the machine is very convenient transportation and installation.
Type GS16-30 GS20-55 GS22-75 GS22-90 GS25-110 GS25-132 GS29-200
Disk diameter(mm) 1600 2000 2240 2240 2500 2500 2850
Productivity(t/h) 15~20 25~32 30~35 35~40 40~50 50~60 60~80
Main motor power(KW) 30 75 75 90 110 132 200
Rotor motor power(KW) 2x15 2x22 2x30 2x37 2x45 2x55 2x55
Spindle speed(r/min) 34 31.72 27.32 27.32 27.32 27.32 25.4
Rotor speed(r/min) 980 980 975 975 950 950 850
