Belt-type Permanent-Magnetic Separator

Belt-type permanent-magnetic separator

Belt-type permanent-magnetic separator

The permanent-magnetic separator produced by our factory is widely used in industries such as metallurgy, mining, power generation, combustion, building materials, ceramics, flour, casting, etc. It can be used to separate strong magnetic substances mixed in loose materials including iron nails, iron beans, cold iron, core bones, and sprues from the materials to protect process equipment and transportation equipment for crushing, screening, lifting, feeding, mixing, and shaping. It can also be used to recycle scrap iron and be used for magnetic raw materials such as powder metallurgy and selected iron oxide scales.

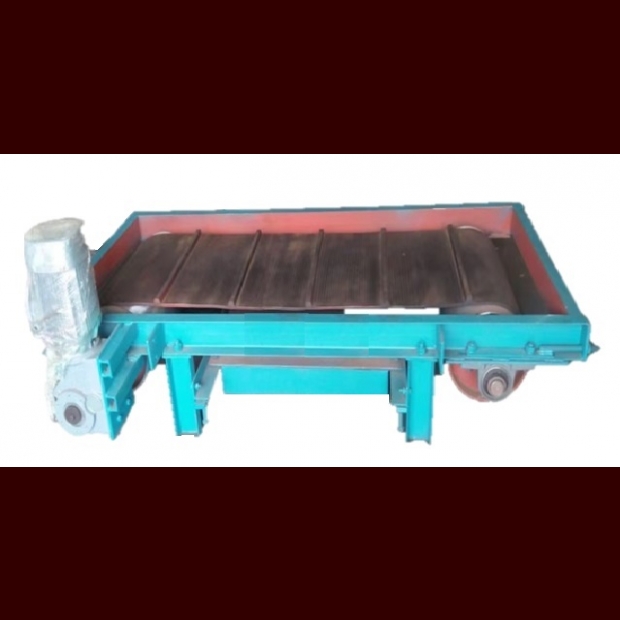

  • 懸掛式磁選照片2.jpg

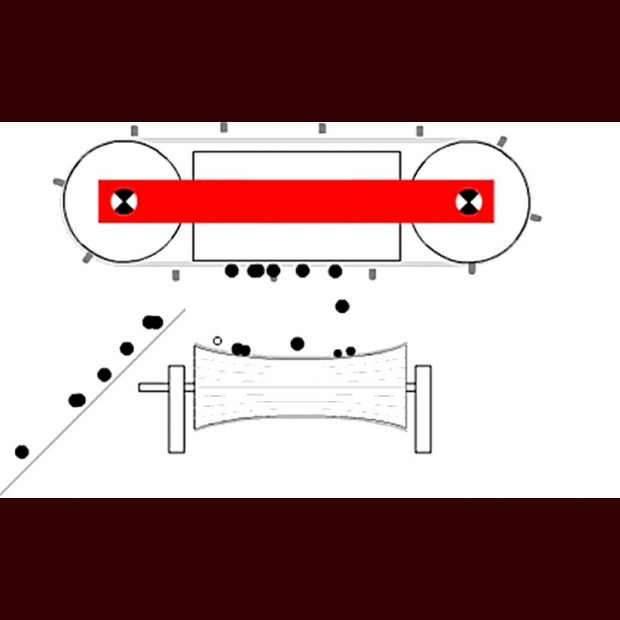

  • 懸掛式磁選解析.jpg
DETAIL
This series of permanent-magnetic separators can operate normally by regularly oiling the bearings. They can work continuously for a long time in the environment with a temperature below 70 ℃. They are characterized by strong magnetic attraction, thick separation layers, high magnetic field strength,  separation rate of 96.99%. The magnetic system has slow aging and a long service life, with a decrease of only 18% in 5-7 years, which is still close to electromagnetic separation equipment and can be reused.
